Git Tutorial for non-programmers

Git is a free and open source distributed version control system designed to handle everything from small to very large projects with speed and efficiency. It is the most popular version control system among professional programmers, and the aim of this tutorial is to make it understandable and usable by non-programmers.

Git can be used both from the command-line interface (CLI, a.k.a. cmd under windows) or via a graphical user interface (GUI). This page describes the operations that Git can execute, independently from the type of interface and refers to other pages for the CLI way of doing it. This resource does not explain how to use any of the several available GUI's, but you can find the documentation you need on the internet once you know the basics.

Let's get started: init

Say that you have a folder MyProject containing some files (or it is empty) and you want to start version-controlling it with git. To do that you ask git to run the init operation.

The git init operation creates a .git subfolder inside the MyProject folder, which will hold all the git internal files. You don't need to be concerned about that folder; just don't delet it, or git will lost all its memory about the version history of MyProject.

Learn how to perform the git init operation via the CLI.

Save your work: commit

We all need to regularly make backups of our work, so for example, we will take the folder containing our work and we will make a copy of it, namining it something like MyProject_2024-10-14. Then, if anything goes wrong with the files in our working directory MyProject, we can always restore to an older version of it.

In git terms, this is a commit operation (to commit = consign or record for preservation). You run a git commit operation and git will make a copy of your working directory and give it a name for you. You can commit as many versions of your working directory as you want.

Notice that git commit takes a snapshot of your entire working directory, but it does so in a smart and disk-space-efficient way: just the minimum amount of strictly necessary information will be stored on disk.

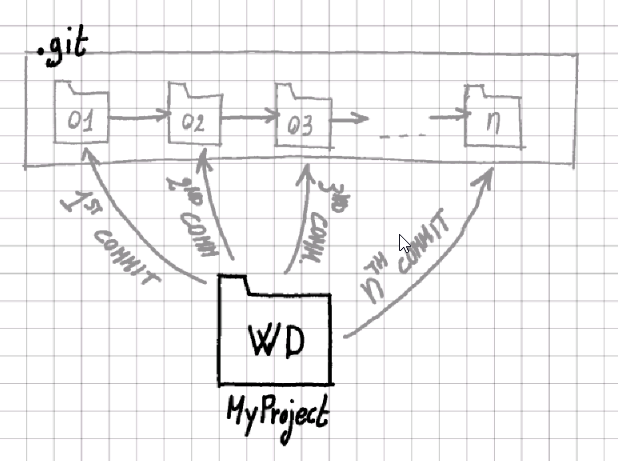

We will visually represent the working directory (WD) and its commits (git name for snapshot/backup) as shown in the following picture.

commits

Learn how to perform the git commit operation via the CLI.

Restore your work: checkout

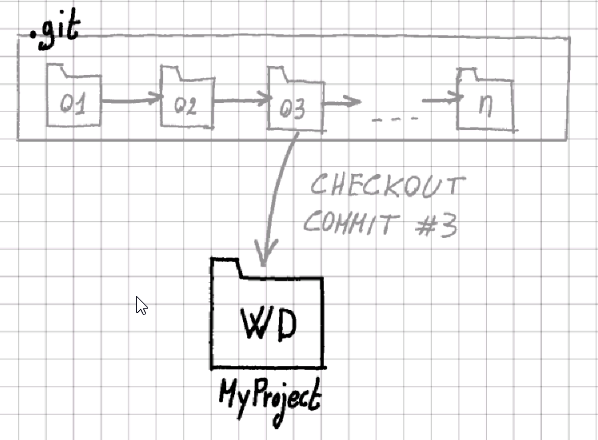

If you want to restore the working directory to the status it had at the moment of a certain commit, you run the git checkout operation.

commits

Learn how to perform the git checkout operation via the CLI.

Try new ideas: branch

There are situations when you may want to create a copy (WD2) of your working directory (WD1), to try something new without messing up the original copy WD1. Eventually, if your new idea works, you will want to delete the original WD1 and go back to having only one version (WD2) of your work. If your new idea turns out to be a bad idea, you can just delete the second copy WD2 of your working directory and go back to the original copy WD1.

The operation of creating a copy of your working directory, in Git is called branching; except that Git doesn't really create a copy of anything: the branch exists in the .git folder and you just choose which branch gets loaded in your working directory.

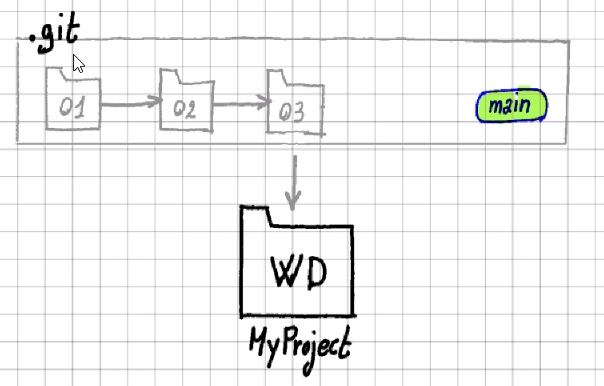

Say that you have done 3 commits and that your working directory corresponds to the third commit. In git terms, you are on the main branch and the status of your project looks like the following figure.

branch-0

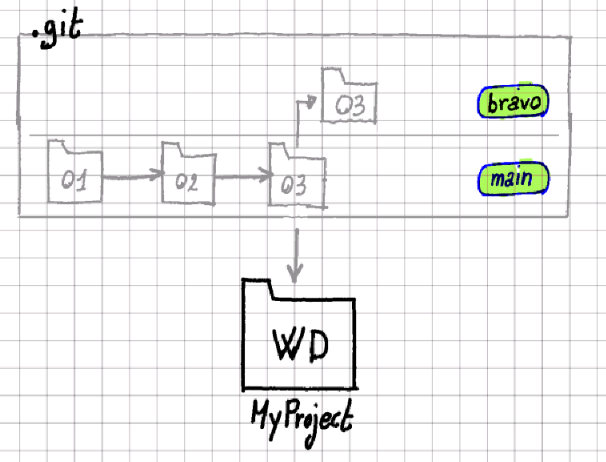

When you create a new branch (say branch 'bravo'), it's like if a copy of commit 03 is made internally by git.

branch-1

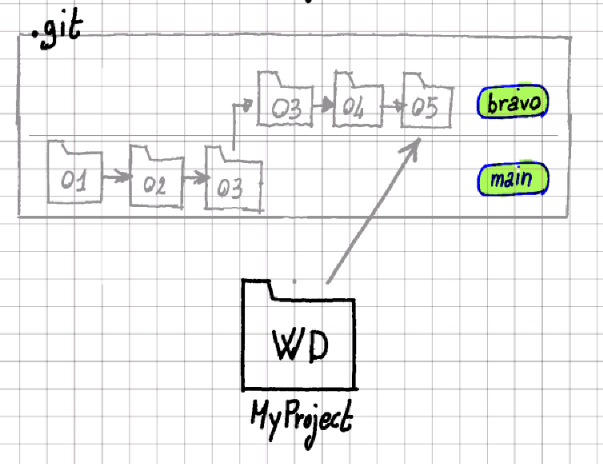

Now you can switch to the branch 'bravo' and start committing changes to that branch, while the 'main' branch stays unchanged.

branch-2

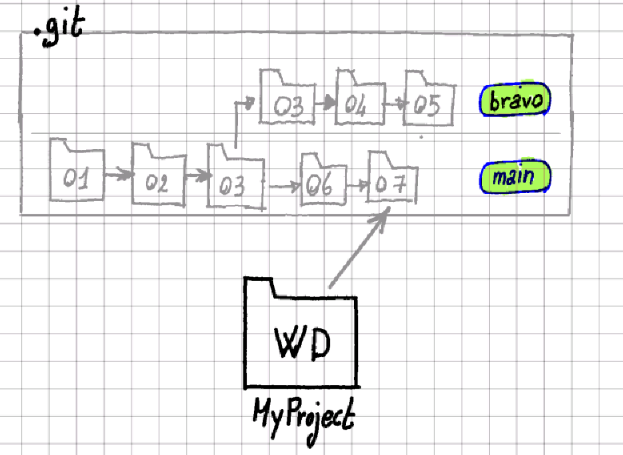

You can switch between your two branches as many times as you want. Every time you switch branch, the latest commit of that branch will be checked-out to your working directory. If you switch back to the 'main' branch, you can also keep committing changes to it.

branch-3

Learn how to perform the git branch operation via the CLI.

Synchronize branches: merge

In the previous section we talked about the git branch operation, which is conceptually equivalent to making a copy (a branch) of your working directory and having two versions of the same project. Let's imagine that we have modified both copies of the project folder (committed changes in both branches). In such a situation, going back to one version that keeps all the changes made to both branches can be a real pain. Git makes it easy, by implementing the merge command.

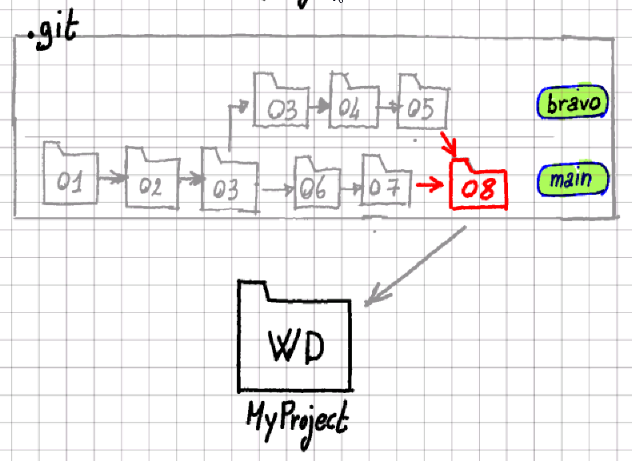

The git merge command takes the last commits of two different branches and mixes them together in a new commit, such that the new commit contains all the changes of both the branches. The following figure shows merging the branch 'bravo' (commit 05) and the branch 'main' (commit 07) into the new commit 08, which is then added to the 'main' branch.

merge

Learn how to perform the git merge operation via the CLI.

Collaboration: clone, push and pull

Say that Remy, a colleagues of yours, has a Git-versioned project for which he needs your help and say that you want to cooperate with him on his project. One way for Remy to allow you to do so is by giving you access to his project folder and letting you modify its content. A better way would be for him to give you a copy of his project folder, letting you modify your own copy of the files and then mergeing the two copies together.

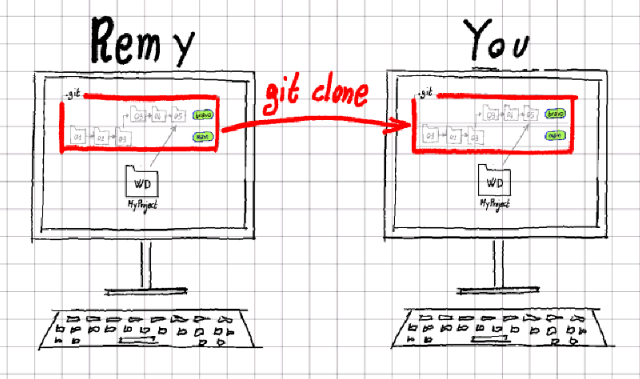

In the Git world, the operation of getting a copy of someone else's project folder from his computer to yours is called 'cloning'.

merge

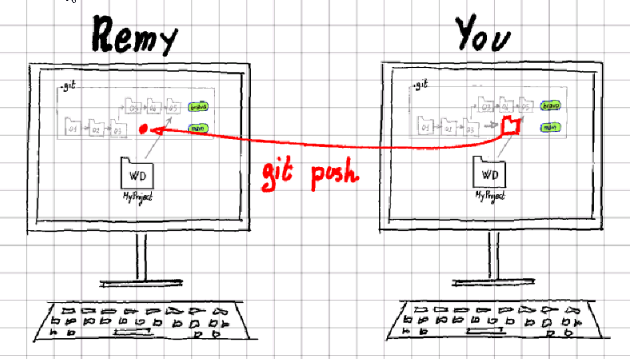

When you have committed some changes to your local clone of Remy's project folder, you may want to send those commits over to Remy's machine, so he stays in sync. This operation is called push: you push your changes to Remy's project folder.

merge

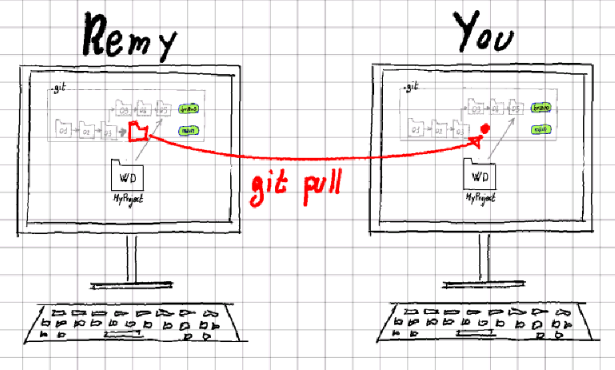

When Remy has committed some changes to his local project folder, you may want to fetch those commits from his machine to keep your clone in sync. This operation is called pull: you pull Remy's changes from his project folder.

merge

In reality, pull will not just fetch the remote commits to the local repository, but it will also merge them. There is a git operation that fetches remote commits without merging them and it is called (gess what?) git fetch.

Of course collaboration is not limited to a two-people team: you can collaborate with as many people as you want. Each collaborator holds his/her own version of the project on his/her local machine and anybody can push to or pull from anybody else.

It goes without saying that collaborating on large projects requires a minimum amount of coordination between the team members as well as the definition of a set of collaboration rules. Git doesn't dictate any of those rules and leaves the team members completely free to choose their cooperation strategy.

Over time, two main git branching strategies for collaborations have emerged: Git Flow and trunk-based development. You can learn about them via the provided links or one of the many resources available on the internet.

What is GitHub then?

In the previous chapter we have stated that Remy can share his project folder over the network and give permission to other people to clone his folder and push or pull changes to and from it. What whe haven't shown is how Remy can actually to do that! That's because it's not a very straightforward operation for beginners (to whom this article is addressed).

Luckily GitHub (and many other similar services) come to the rescue, by providing an easy way (web-based interface) to create (and host) remote repositories and share them with others.

Therefore you could say that GitHub and its competitors are just web-services based on Git.

Learn more

There are a ton of free resources available on the internet for learning Git. Here is a selection of them.
